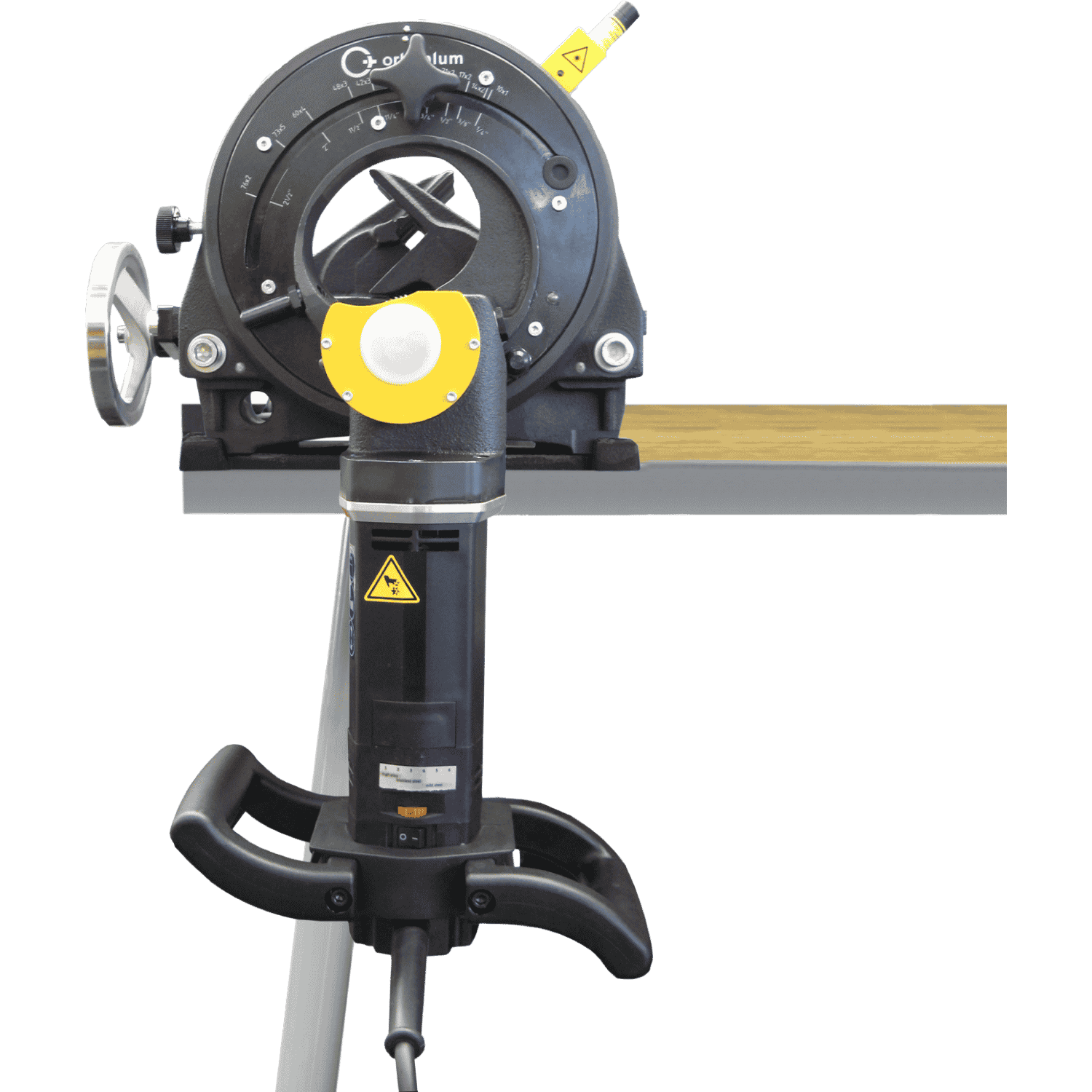

GFX 6.6 – Pipe Cutting & Beveling Machine

GFX series is the ideal solution for cutting of thin-walled tubes. The rugged design for a long product life makes the saws especially economical. Furthermore, the long tool lives thereby increase the productivity.

E-LINE / DOKUMENTATION

Beskrivning

Innovative saws from Orbitalum Tools for cutting and chamfering pipes and for cutting out pipe bends (also from thin-walled stainless steel) in seconds. The optimal preparation for the automated welding process! The GFX 6.6 is an easy-to-operate, powerful and compact saw with low weight.

  • Right-angled, burr-free and cold machining process

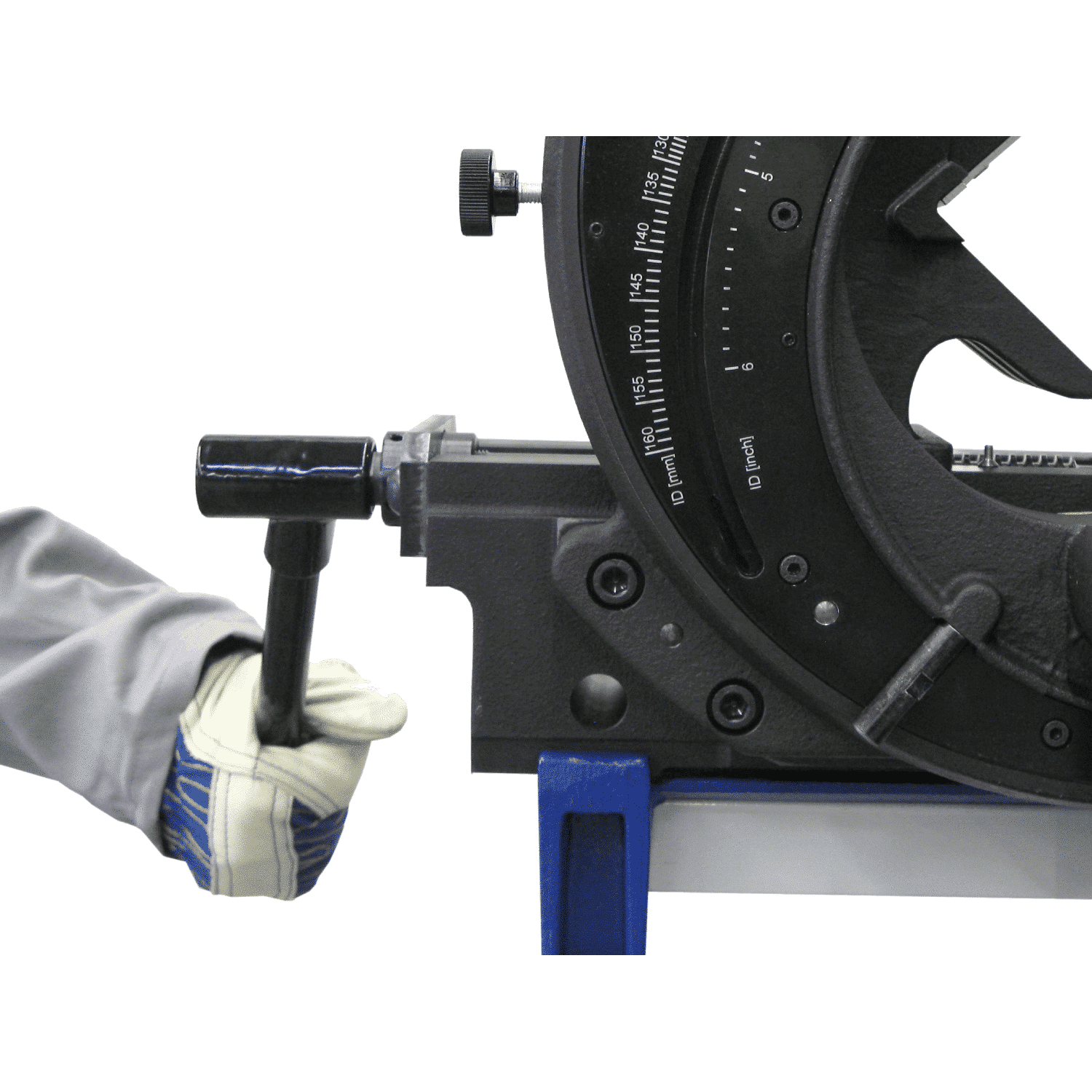

  • Deformation-free clamping, even with thin-walled tubes
  • Good handling due to low weight
  • Chamfering of tube ends parallel or separately to the cutting process
  • Increased productivity
  • Low maintenance and easy to service
  • Environmentally friendly and long service life
  • Additional saw blade holder for cutting out pipe bends

Now characteristic of ORBITALUM pipe saws, the cutting point on the pipe can be conveniently marked by line laser. A second saw blade clamping point enables the cutting of pipe bends.

Connection with quick-release coupling allows easy and convenient replacement of the flexible rotating cable.
The application areas are mainly in the food, beverage, pharmaceutical, and chemical industries.

Ytterligare information

Ytterdiameter rör (min-max)

21,3 – 168,3 mm

Godstjocklek

0,8 – 7,0 mm

Innerdiameter rör (min)

23,0 mm (sågblad Ø 63 mm)
18 mm (sågblad Ø 68 mm)
6,0 mm (sågblad Ø 80 mm)

Ytterdiameter (min-max)

24,6 – 168,3 mm (sågblad Ø 63 mm)
21,3 – 168,3 mm (sågblad Ø 68 mm)
21,3 – 156,0 mm (sågblad Ø 80 mm)
